DMX-Interface

Art-Net interface for controlling DMX devices via WiFi or Ethernet.

---

🛒 Parts

Count	Part
1x	ESP32
2x	RS485
1x	W5500-ETH
1x	LED-Button
1x	♂️-DMX-socket
1x	♀️-DMX-socket

Additionally you need: some wires, soldering equipment, 3D-printer, small screws, shrink tubing, hot glue gun

---

📱 Implemented microcontrollers

• Lolin S2 mini
• ESP 32 WROOM
• ESP 32 C3

For other microcontrollers you may need to adjust the platformio.ini

---

🔌 Wiring

You have to short-circuit R0 on the RS485 boards to enable the termination resistor required for DMX before the first and after the last device in line.

GPIO	Usage
GND	GND to others
3,3V	VIN on RS485
5V/VBUS	VIN on W5500
0	Onboard Button
5	Ext. Button
7	Ext. LED
15	Onboard LED
17	U1TXD
18	U1RXD
21	U0TXD
33	U0RXD
34	SPI CS
35	SPI MOS
36	SPI SCK
37	SPI MISO

---

🚀 Installation

1. make sure you have PlatformIO installed
2. open the project folder in PlatformIO
3. click Upload Filesystem Image
4. click Upload and Monitor
5. 🏁 you are done 🎉

---

🧑‍💻 Development

Required tools

• ESP-IDF (includes idf.py)

• invoke (for project tasks)

• Optional but recommended for development:

  • pre-commit (for code quality hooks)
  • clang-format (C/C++)
  • prettier (JavaScript/CSS/HTML/YAML)
  • svgo (SVG optimization)
  • nixfmt (Nix formatting)

Environment setup

This repository includes a flake.nix with a ready-to-use development shell.

nix develop

Alternatively, you can use direnv to automatically enter the development shell when you cd into the project directory.

Without Nix, install ESP-IDF and Python dependencies manually (especially invoke) and ensure idf.py is available in your shell.

Run invoke --list to see all available tasks.

Examples:

invoke flash
invoke reset
invoke config

Pre-commit hooks

This project uses pre-commit to automatically check code quality, formatting, and common mistakes before committing.

Setup:

# Install pre-commit hooks
pre-commit install

# Optionally, run all hooks on all files
pre-commit run --all-files

---

📦 Case

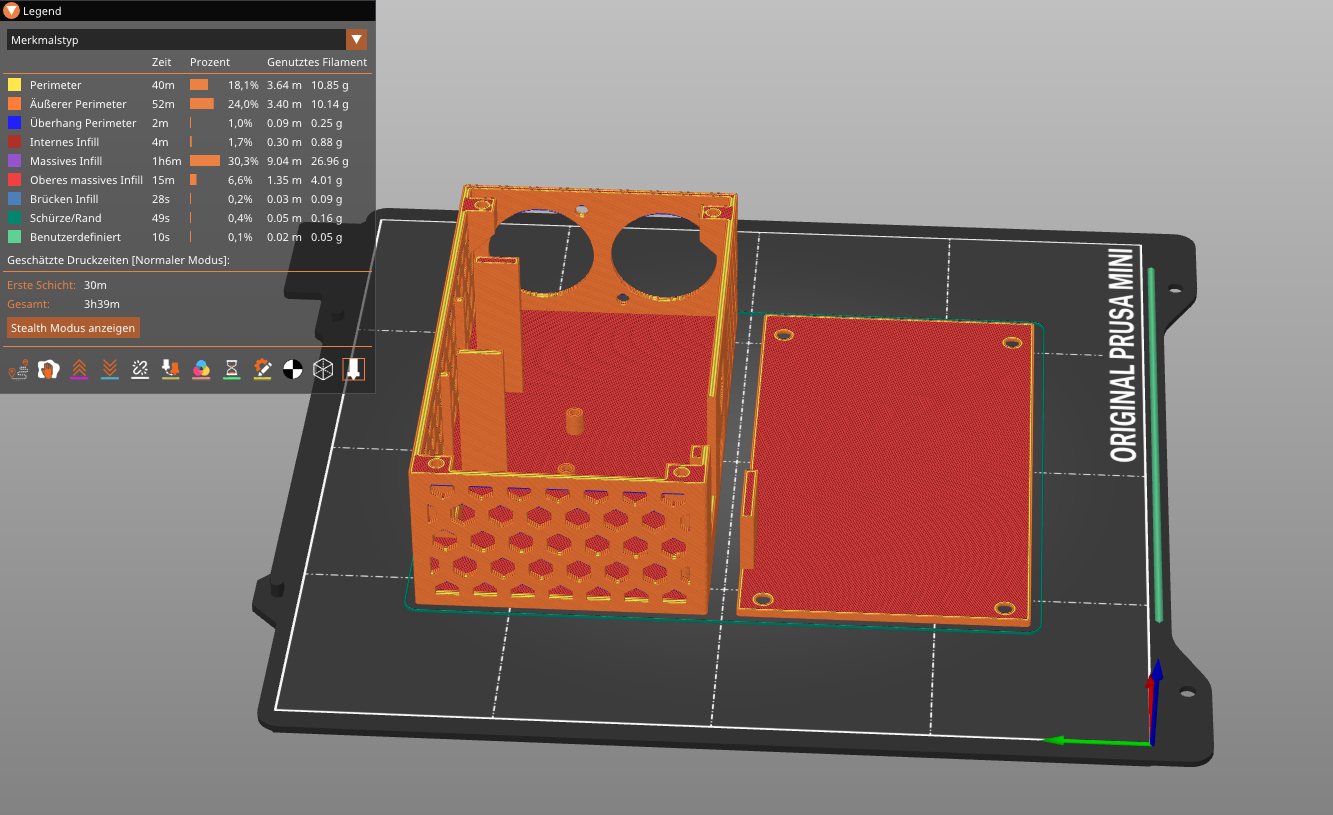

All print files (STL, STEP, X_T) can be found in assets/case. Alternatively you can view the project on OnShape where you can export the files in a format you like.

---

💡 Status LED

LED	Description
	no power; LED deactivated
	powered on; normal
	startup; warning
	resetting; error

---

⚙️ Default config

To reset the settings, hold down the button and connect the ESP to the power supply, the LED will flash quickly. After 3 seconds the LED should light up static and the settings are reset. If you release the button early you abort the reset and the LED flashes slowly.

Setting	Value
TYPE	WiFi AP
SSID	ChaosDMX-□□□□
PASSWORD	mbgmbgmbg
IP-Address	192.168.4.1
DMX1 (Left)	OUTPUT; Universe 1
DMX2 (Right)	INPUT; Universe 2
LED Brightness	10 %

---

🤝 Contributing

Contributions, issues and feature requests are welcome!
Feel free to check the issues page.

---

👥 Authors

Chaostreff Backnang

@HendrikRauh

@RaffaelW

@psxde
