Simple DIY DMX-Interface
67 commits 2 branches 0 tags 5.7 MiB
C++ 40.7%
HTML 25%
JavaScript 20.9%
CSS 10.1%
C 3%
Other 0.3%
Find a file
RaffaelW 20984878ea added values in config that i forgot
2024-11-05 09:15:45 +01:00
.vscode formatted extensions 2024-10-24 19:07:52 +02:00
assets/circuit/handwritten transformed the handwritten note to text 2024-11-03 17:32:36 +01:00
data implemented loading animation during requests 2024-11-05 09:11:36 +01:00
src added values in config that i forgot 2024-11-05 09:15:45 +01:00
.gitignore added vscode folder to gitignore 2024-11-03 16:00:40 +01:00
platformio.ini defined Async Webserver 2024-10-31 22:25:28 +01:00
README.md transformed the handwritten note to text 2024-11-03 17:32:36 +01:00

README.md

DMX-Interface

Art-Net-Interface

Case

OnShape

STL's coming soon, case still being developed.

Wiring

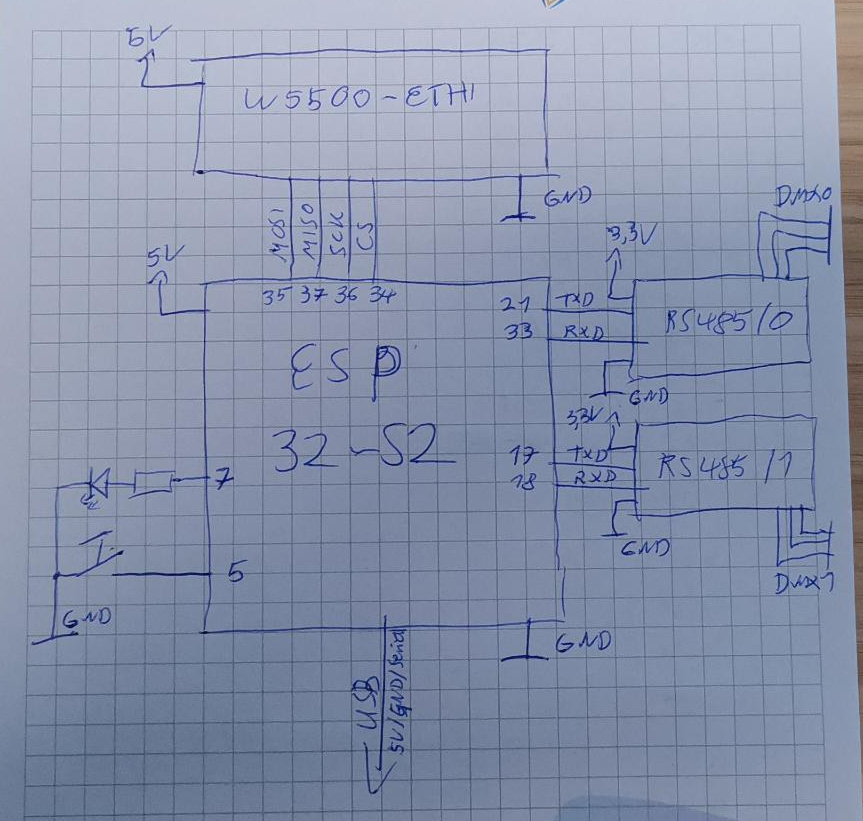

Handwritten diagram

Pin usage

GPIO Usage
GND GND to others
3,5V VIN on RS485
5V VIN on W5500
0 Onboard Button
5 Ext. Button
7 Ext. LED
15 Onboard LED
17 U1TXD
18 U1RXD
21 U0TXD
33 U0RXD
34 SPI CS
35 SPI MOS
36 SPI SCK
37 SPI MISO
