Simple DIY DMX-Interface

Find a file

Hendrik Rauh 37b528ddfa Pre build script to update submodules Fixes #36		2024-12-13 18:20:39 +01:00
.vscode	formatted extensions	2024-10-24 19:07:52 +02:00
assets/circuit/handwritten	transformed the handwritten note to text	2024-11-03 17:32:36 +01:00
data	fixed index of wifi-sta and wifi-ap in frontend	2024-11-05 20:18:33 +01:00
lib	Fix some bugs from merging and add second dmx interface	2024-11-24 14:42:59 +01:00
src	Fix some bugs from merging and add second dmx interface	2024-11-24 14:42:59 +01:00
.gitignore	added vscode folder to gitignore	2024-11-03 16:00:40 +01:00
.gitmodules	Add libs as submodules (get with git clone --recurse-submodules <url> or later via git submodule update --init --recursive)	2024-11-10 15:35:17 +01:00
platformio.ini	Pre build script to update submodules	2024-12-13 18:20:39 +01:00
pre_extra_script.py	Pre build script to update submodules	2024-12-13 18:20:39 +01:00
README.md	transformed the handwritten note to text	2024-11-03 17:32:36 +01:00

README.md

DMX-Interface

Art-Net-Interface

Case

STL's coming soon, case still being developed.

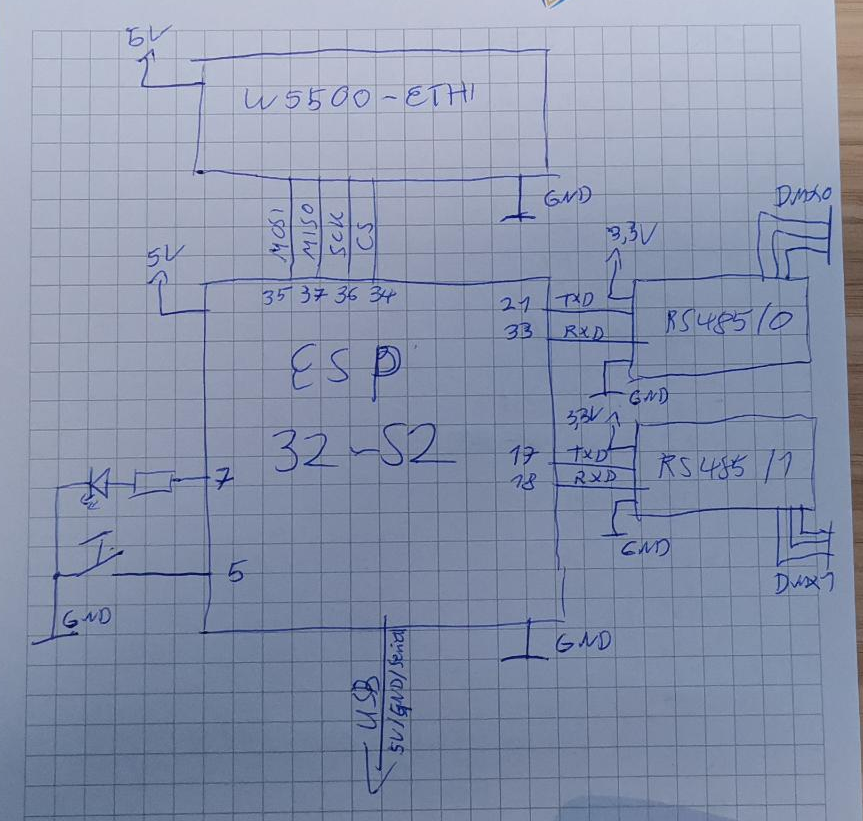

Wiring

Pin usage

GPIO	Usage
GND	GND to others
3,5V	VIN on RS485
5V	VIN on W5500
0	Onboard Button
5	Ext. Button
7	Ext. LED
15	Onboard LED
17	U1TXD
18	U1RXD
21	U0TXD
33	U0RXD
34	SPI CS
35	SPI MOS
36	SPI SCK
37	SPI MISO
