Simple DIY DMX-Interface
68 commits 2 branches 0 tags 8 MiB
Find a file
Hendrik Rauh ec55b6a865 added stl's of the case
Fixes #9
2024-11-10 12:19:42 +01:00
.vscode formatted extensions 2024-10-24 19:07:52 +02:00
assets added stl's of the case 2024-11-10 12:19:42 +01:00
data implemented loading animation during requests 2024-11-05 09:11:36 +01:00
src added values in config that i forgot 2024-11-05 09:15:45 +01:00
.gitignore added vscode folder to gitignore 2024-11-03 16:00:40 +01:00
platformio.ini defined Async Webserver 2024-10-31 22:25:28 +01:00
README.md added stl's of the case 2024-11-10 12:19:42 +01:00

README.md

DMX-Interface

Art-Net-Interface

Case

STL for the body

STL for the lid

Onshape Project

Wiring

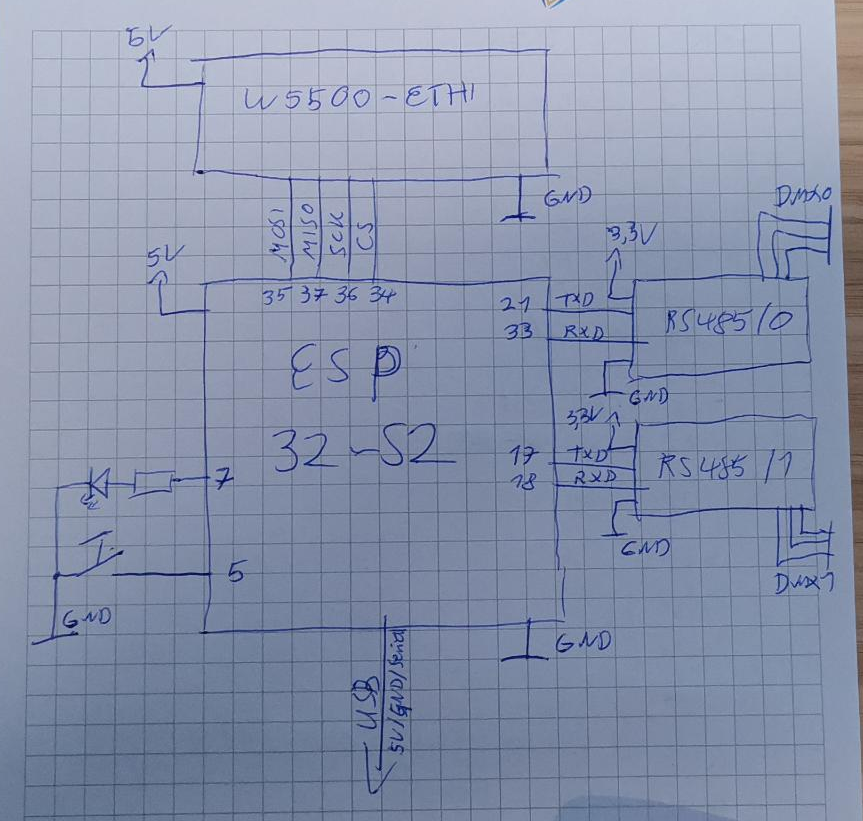

Handwritten diagram

Pin usage

GPIO Usage
GND GND to others
3,5V VIN on RS485
5V VIN on W5500
0 Onboard Button
5 Ext. Button
7 Ext. LED
15 Onboard LED
17 U1TXD
18 U1RXD
21 U0TXD
33 U0RXD
34 SPI CS
35 SPI MOS
36 SPI SCK
37 SPI MISO
