DMX-Interface

Art-Net-Interface

Case

All print files (STL, STEP, X_T) can be found in assets/case. Alternatively you can view the project on OnShape where you can export the files in a format you like.

Prusa Slicer with case loaded

Wiring

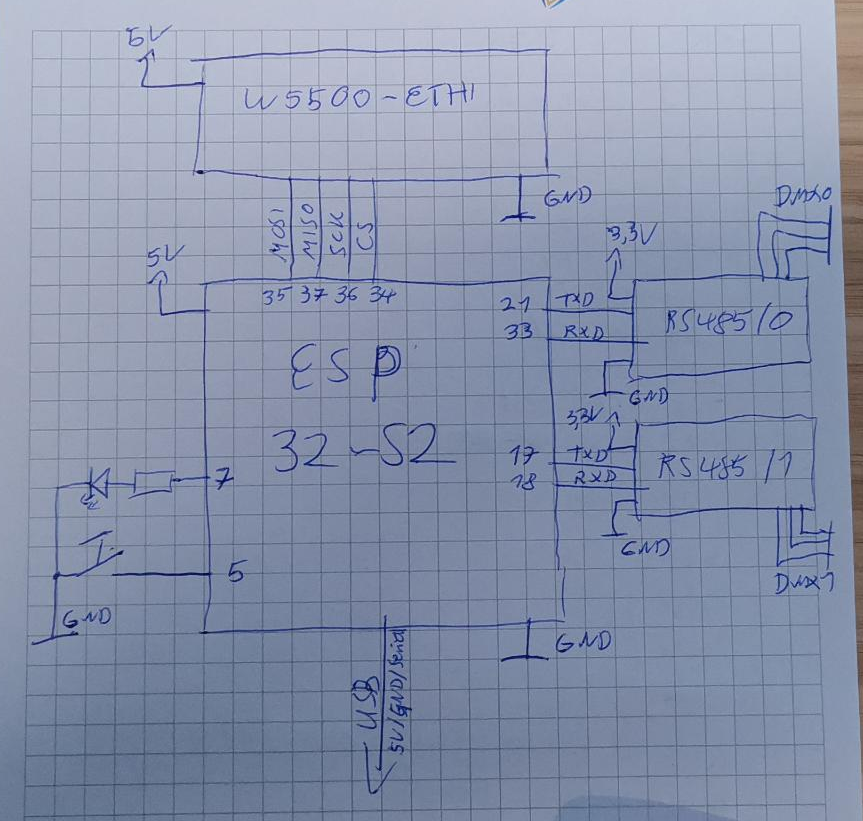

Handwritten diagram

Pin usage

GPIO Usage
GND GND to others
3,5V VIN on RS485
5V VIN on W5500
0 Onboard Button
5 Ext. Button
7 Ext. LED
15 Onboard LED
17 U1TXD
18 U1RXD
21 U0TXD
33 U0RXD
34 SPI CS
35 SPI MOS
36 SPI SCK
37 SPI MISO
